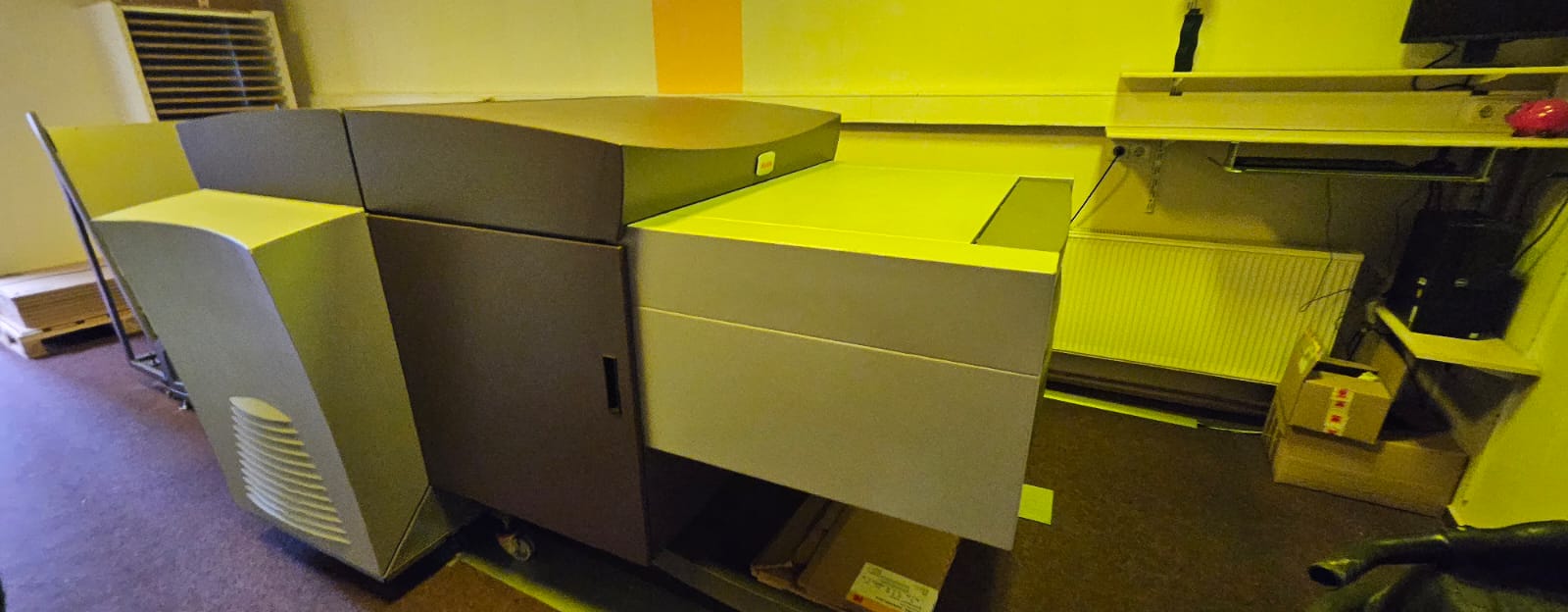

Kodak Magnus 400 Quantum (2008)

Platesetter with RIP

Dongle

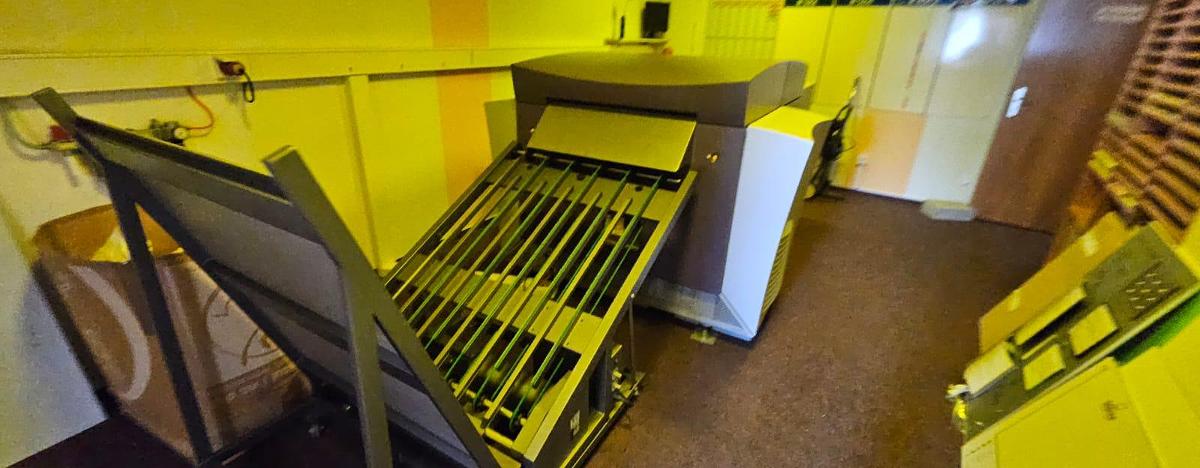

PC and plate output table.

Technology: 830 nm thermal imaging platesetter, semi or fully automatic, external drum

Throughput: V speed: 28 plates per hr

Resolution: 47.2 and 94.4dpmm (1200 and 2400dpi) or 50 and 100dpmm (1270 and 2540dpi)

max. Plattenformat : 680 x 750 mm

min. Plattenformat : 311 x 228

Load/unload systems:

ContinuousLoad: Semi-automated; as one plate is imaged, another is placed on standby for automatic loading as soon as the drum unloads

Single-cassette option: Fully automated; unit holds up to 50 plates with slip sheets (plates of same size and thickness). Functions are identical to multi-cassette.

Multi-cassette option: Fully automated; unit holds up to 150 plates in three cassettes, each casette containing at least 50 plates of the same size and thickness. The required cassette is automatically selected according to the job definition. The MCU automatically loads and unloads plates, and removes slip sheets. Slip sheets can be removed from the storage bin while the platesetter is running. Empty cassettes can be reloaded while the platesetter is running.

Remarks: Plate size is sufficient for 6-up formats (6-up)
